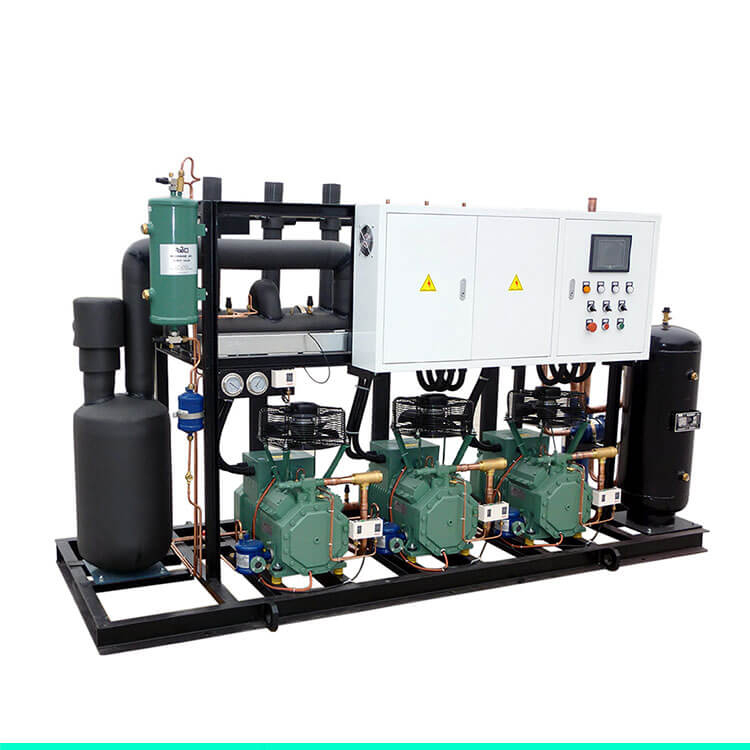

Bitzer compressor rack system uses multiple compressors in one system, bigger cooling capacity, safer, easier install and control.
What’s more, each compressor is independent and runs according to system loading, so higher efficiency and longer lifetime.
Balanced oil level is very important for the compressor rack. If compressor no oil, it’ll damage soon.

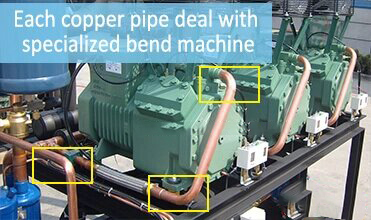

Specialized bend machine deal technology, 100% no leaking problem. In corners part, we use bending instead of copper corners.

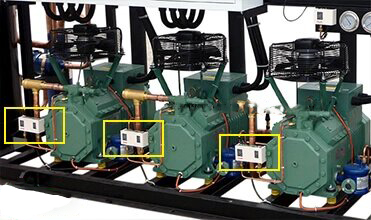

For bitzer compressor rack system, each compressor run based on the machine loading, so accurate pressure controller is very important.

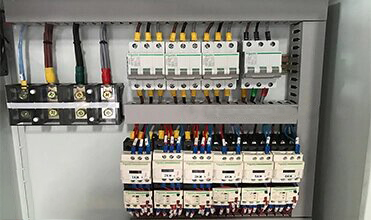

It’s equipped with Schneider electric, with multi protections including phase protection, phase lack, over current, too constant starting of compressor, discharge temperature, etc.
| compressor type | Bitzer compressor and screw compressor |
| Horsepower | 18HP~300HP |
| cooling type | Air cooled, water cooled, evaporative |
| Coolant Type | R134a, R404a, R507a or R22 |
| place to assemble | Interior/exterior door (concrete construction building/steel construction building). |
| Voltage | 220V/50Hz, 220V/60Hz, 380V/50Hz, etc. |
| Controller | Automatic electrical controller, PLC |

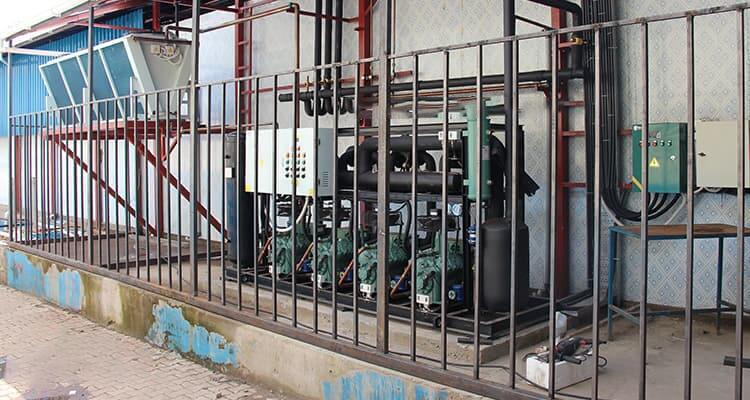

Customer info: This project is in tropical country, ambient temperature up to +38C most of the year. Considered the machine stability and efficiency, we advise compressor rack systems.
Order info:
Compressor rack: 4x18HP Bitzer semi hermetic compressors, with EC fan, with economizer.

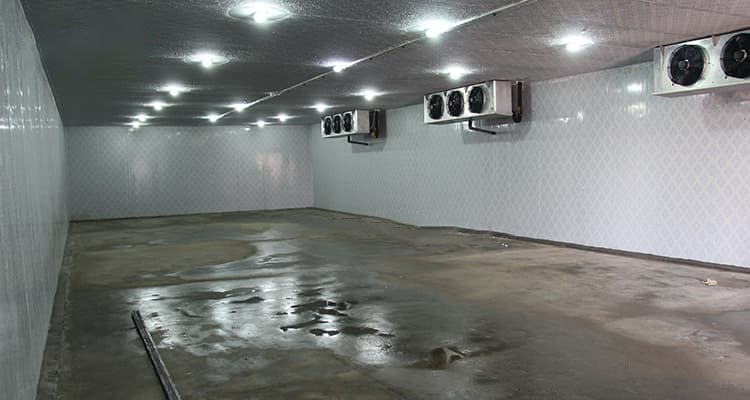

Cold room dimension 32x12x5meter with ante room, 150mm PU panels with 0.6mm color plate.
