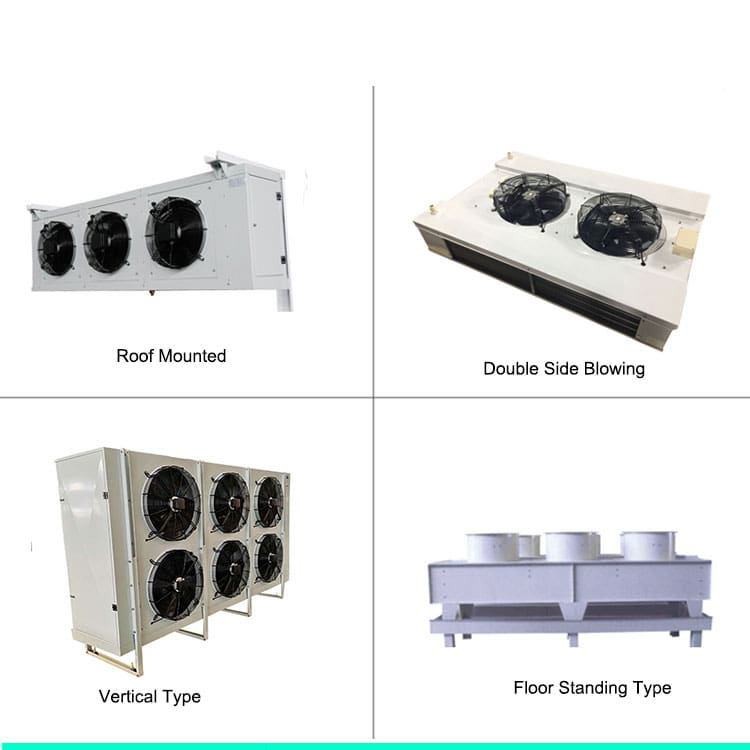

We can supply many kinds of Unit Cooler:
Roof Mounted
Blast Design Type(Vertical Type)
Double Side Blowing
Floor Standing Type
Dimension(L*W*H): Customized
Fin material: Copper, Aluminum, SUS304, Hydrophilic aluminum foil, and Epoxy Coating
Fin space: 4 – 10 mm
Tube material: Copper, Aluminum, SUS304, etc.
Epoxy fins Hydrophilic aluminum foil
Evaporator air cooler with Epoxy fins
FreezePro has DL, DD, DJ series of cold room evaporators for different range temperatures needed.
DL air cooler for -5~+5 degree C, mainly used for chiller room.
DD for -15~-25 degree C, mainly use for freezer room.
DJ for -25~-40 degress C, mainly use for blast freezer room
Cabinet of magnalium steel, corrosion-proof
Fin space: 4.5mm, 6.0mm and 9.0mm
Refrigerant: R22, R404A, R507A, etc
Stainless steel heater, defrosting evenly
Double water receivers, more stable
Mechanically expanded pipes with Aluminium fins
Long-distance air throw is optional

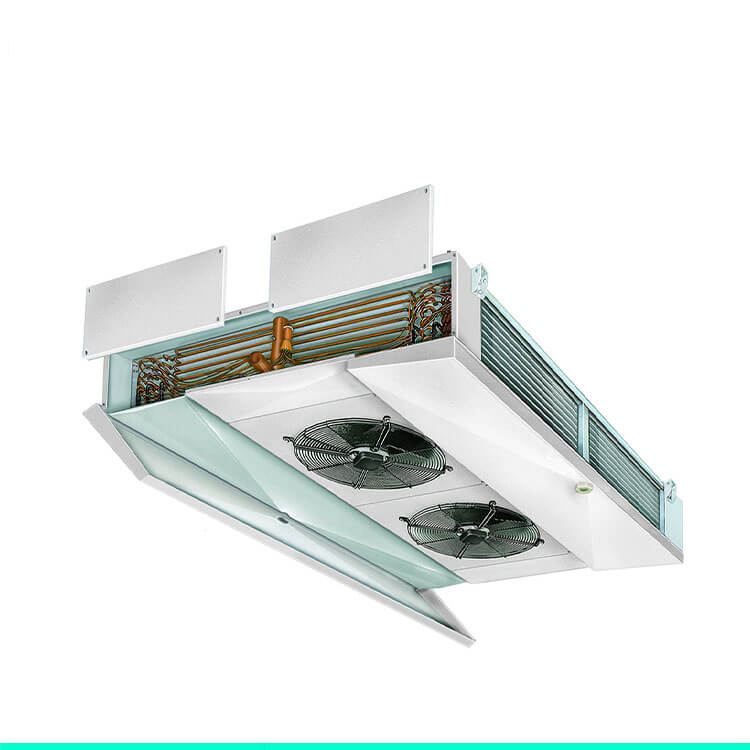

DHF Series Double Side Blowing unit cooler is always used in the processing plant workshop, which is soft air blowing and suitable for working inside.
By the suited temperature, it is divided into 2 series: L, D. suited for the room requiring 0℃, -18℃.
The shell is of aluminum and magnesium alloy plate, corrosion resistant, and beautiful outlook.
The coil is of a crossed-arranged inner screw copper tube, with high heat exchange efficiency.
Assembled with an axial fan, with double-side air-blowing, soft and low noise.
The electric heating tube of stainless steel is deployed inside the coil, having a good defrosting effect.

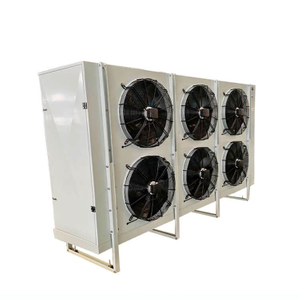

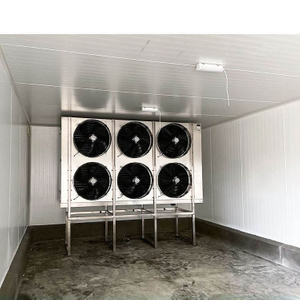

Vertical Blast Freezing Air Cooler：
Models available with 2, 4, 6 & 8 Fans
Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
Fin spacing available from 4 mm to 10 mm
Cooling capacity ranging from 5 kW to 130 kW
Huge heat-transfer surface
