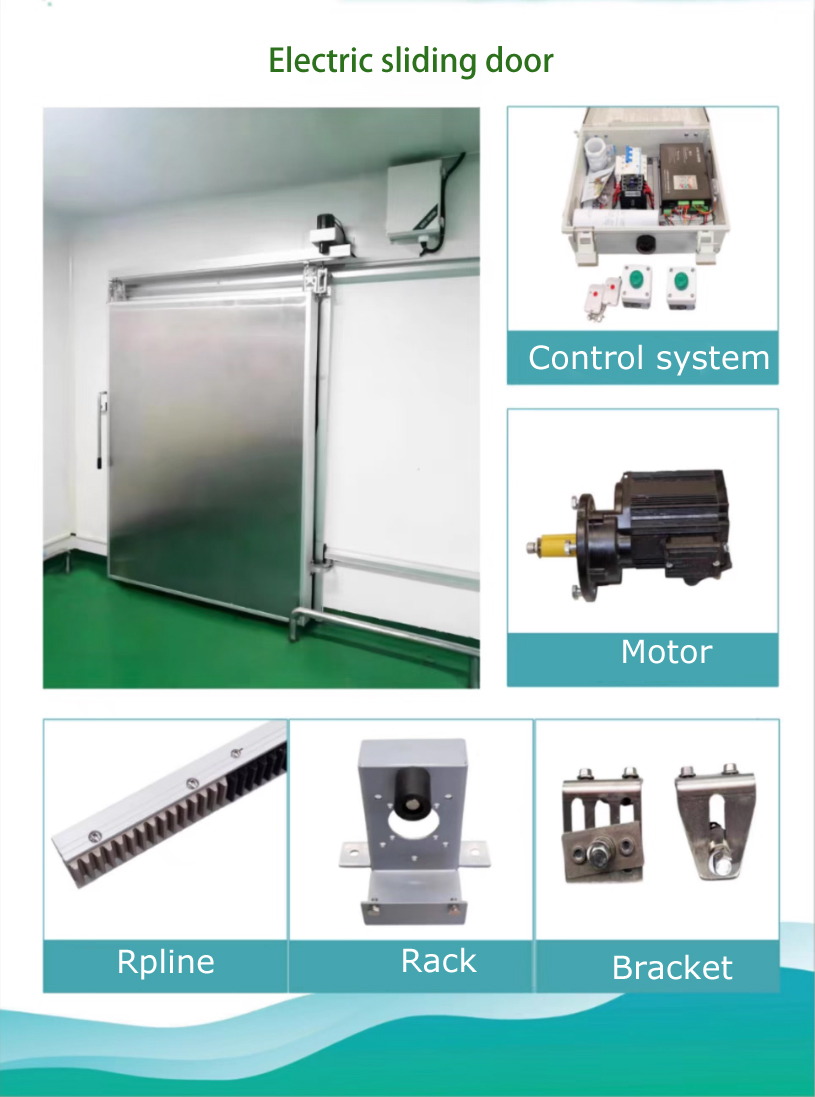

Product Introduction of Intelligent Cold Storage Electric Sliding Door
This cold storage electric sliding door is specially designed for low-temperature storage scenarios. With precise control, safety, reliability and convenient operation as its core advantages, it adapts to the efficient opening and closing needs of various cold storage environments and provides intelligent solutions for cold chain storage management.
1. Flexible and Adaptable Transmission and Power System

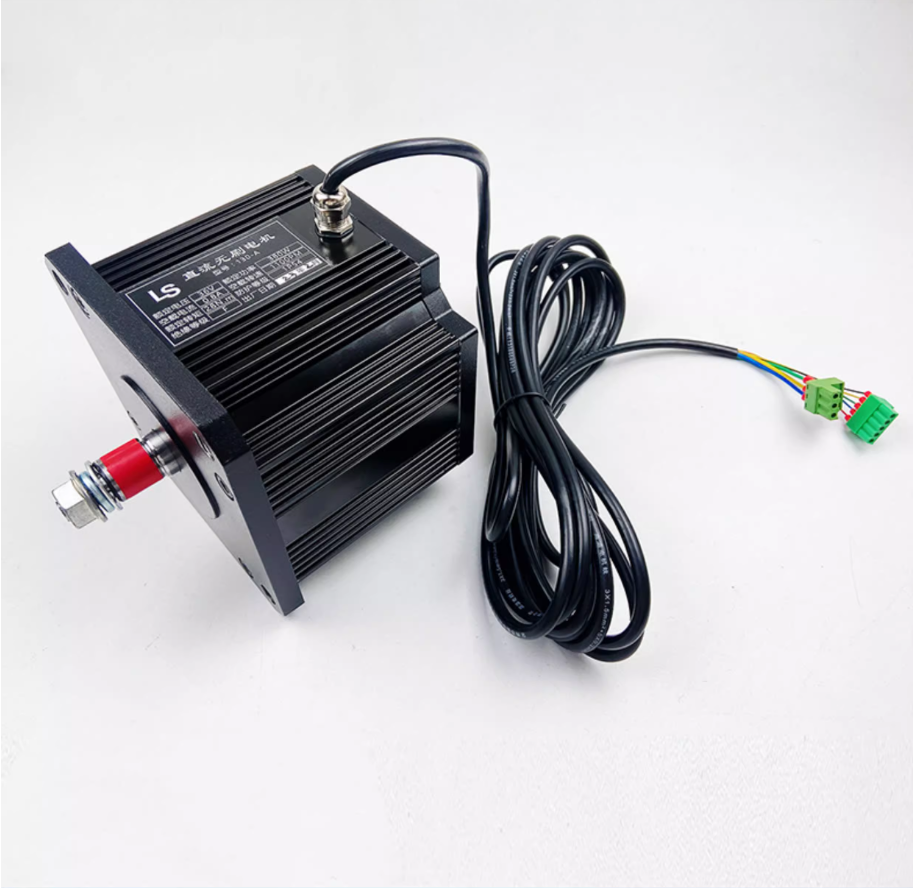

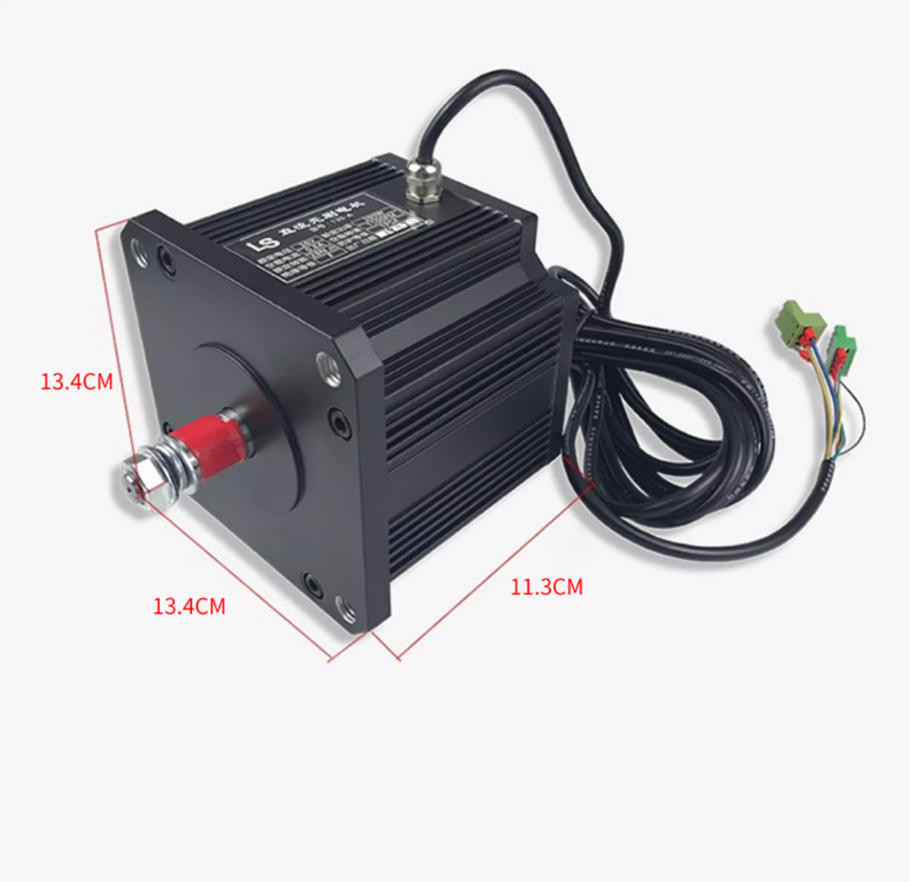

Two transmission methods, synchronous belt and rack, are available for selection. They can be flexibly matched according to the size, load-bearing requirements and usage frequency of the cold storage door, adapting to the stable operation in different scenarios. The power unit adopts an advanced permanent magnet synchronous gear motor with strong output torque. Combined with the optimized gear rack or synchronous belt transmission structure, it runs smoothly without jitter, effectively reducing mechanical loss in low-temperature environments. At the same time, it retains the two-way conversion function between electric and manual operation. Even in special cases such as sudden power failure, the door can be easily opened and closed to ensure the continuity of cold storage operations.
2. Intelligent and Convenient Debugging and Operation Experience
The product is equipped with an intelligent debug-free system. It can automatically complete parameter calibration and operation debugging when powered on for the first time, without the need for professional technicians to operate on site. This greatly simplifies the installation process and saves labor and time costs. It is equipped with a full-process voice prompt function, which provides clear voice announcements from debugging start, normal operation to fault warning, making the operation guidance more intuitive. It supports multi-language customization services and can be flexibly adapted to the language needs of the use scenario, with more user-friendly design to fit diverse application scenarios.
3. Precise and Stable Control and Positioning Technology
The main control unit adopts Texas Instruments' DSP control chip, combined with mature frequency conversion control technology to achieve precise regulation of the door's running speed. Equipped with a 1024 high-precision absolute encoder, it builds a six-stage adjustable speed control system. The speed of the door during startup, operation and stop can be set as needed, which not only avoids the impact of high-speed operation on the door structure, but also improves the opening and closing efficiency. The positioning accuracy of segmented positions is extremely high, and the door's docking error is minimal, effectively reducing cold air leakage and lowering cold storage energy consumption.
4. Comprehensive and Reliable Safety and Expansion Performance
It has a built-in intelligent anti-pinch detection system, which can monitor obstacles in real time during the door's operation. Once a foreign object is detected, it will immediately trigger reverse operation or stop action, fundamentally eliminating the risk of injuring personnel and damaging goods, and ensuring operational safety and cargo integrity. The expansion function is highly compatible, which can be seamlessly connected to the intelligent cold storage management system to realize intelligent management such as remote monitoring and centralized control. At the same time, it supports external connection of various peripherals such as pull-wire switches, gratings, radars and infrared devices, further improving the automation level and use convenience of the door, and adapting to the personalized functional needs of different cold storages.
