Keep your vegetables/ fruits fresh for long-term!
Best insulation panels to save the operation cost!
Design best solution suited to your storage requirements!
Best brand color plate material to be used for many years!
High efficiency refrigeration unit to meet your operation need!
(1) Range: 0~25℃、-5~25℃、-15~25℃、-25~25℃、-35~25℃、-50~25℃
(2)Application:
Supermarkets/Markets/Restaurants/Hotels/Commercial centers, etc.
Vegetables/Fruits/Milk/Yoghourt/Flower, Etc…
(1) Fresh fruits/ vegetables: Stainless steel 304/ Color plate/ Aluminum/ Salinization sheet/ Galvanized sheet.
PS: Color plate is the most popular& cost-effective.
(2) Seafood/ goods with high salt:
a. Stainless steel
b. Salinization sheet
c. (Internal side) Stainless steel + (external side) Salinization sheet/color plate steel/salinization/galvanized/ aluminum
d. (Internal side) Salinization sheet + (external side) Salinization sheet/color plate steel/salinization/galvanized/ aluminum
(3) Medicine: Stainless steel/ color plate
(4) Other food: Stainless steel 304/ Color plate/ Aluminum/ Salinization sheet/ Galvanized sheet.
(1) Save 30% on electricity bill.
(2) Save 50% on maintenance & breakdown.
(3) Save 80% on the installation cost & time.
(4) Professional design by experienced engineers.
So, FreezePro are the best choice for you!
(1) Panels thickness: 50, 75, 100, 120, 150, 180, 200mm.
(2) Panels density: 42kg/m3

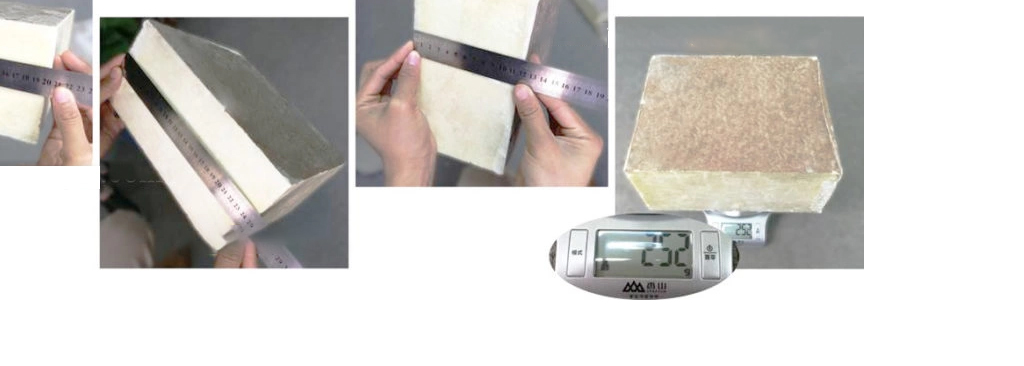

Density calculation test:
Width=0.2m
Length=0.25m
Height=0.12m
Weight=0.252kg
Density=Weight/Volume=0.252/(0.2×0.25×0.12)
=42kg/m3
(3) Cam lock: Galvanized, easy and convenient for installation.
(4) Fireproofing
Fireproofing grade: A>B1>B2>B3 (Gradually increase from right to left)
Our PU panels: B1steel+B2foaming=B1 PU panels

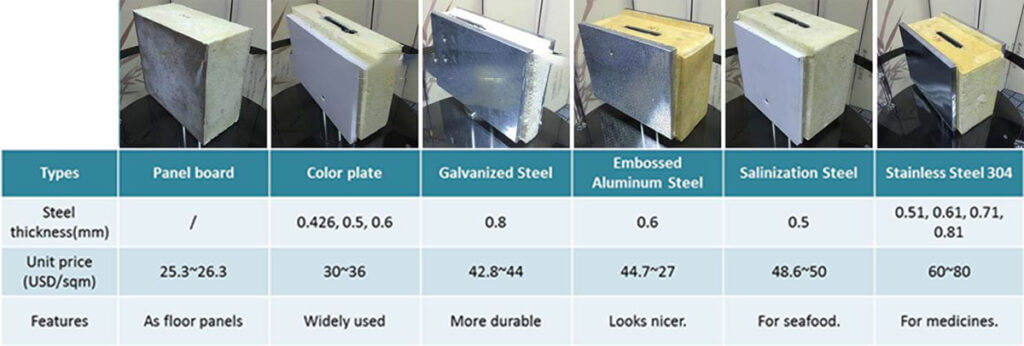

(5) Surface materials
√ Designed: by Teledoor in Germany.
√ Surface materials: 0.6mm color plate.
√ Door hinges German STUV, EU standard.
√ Door’s hardware, switches and door seal: best quality.
√ Our door can be used 2-3 times longer than other suppliers’.

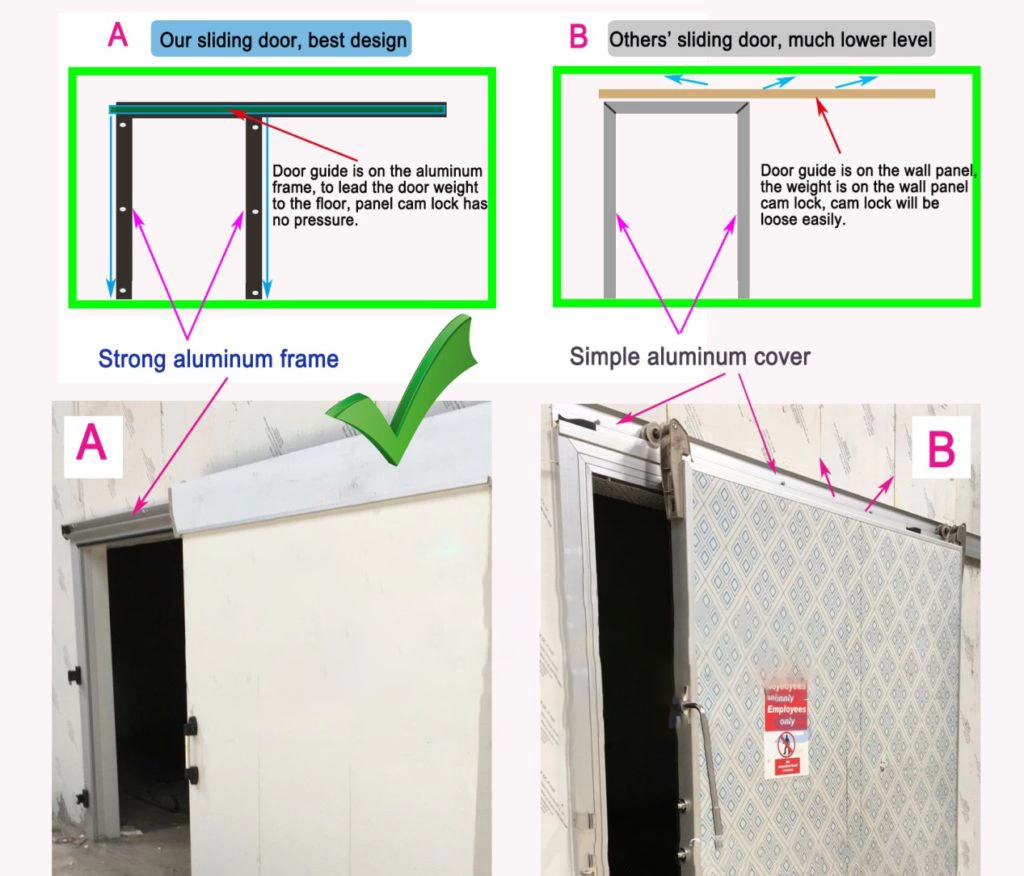

√ Guide cover: protect guide from dust and deformation.
√ Professional design: no pressure on wall panel and cam lock.
√ Strong aluminum frame system: support the door, lead the door weight to floor.

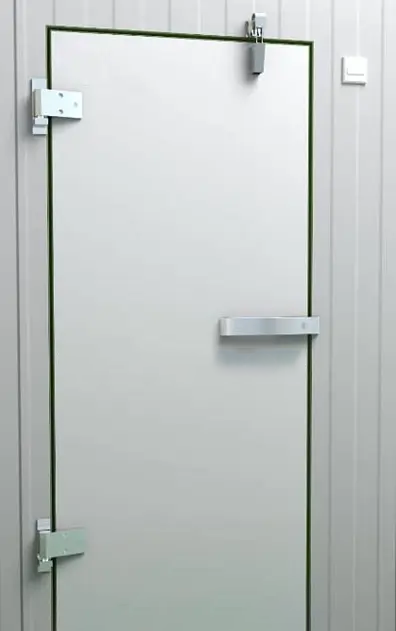

√ Designed: self-closing hinge
√ Function: automatically shut off
√ Application: restaurant, hotel, etc…
When you are often too busy to close the door, the self-closing door is a good choice.
Case:
Drinks medium temperature cold room!
We designed the best cold room for our customer to store drinks, they were very satisfied with our design and service. “FreezePro is the best coopration partner!”
Order info:
Cold room size: 3x3x2m(18m3)
PU panels: 100mm, 0.6 mm Baosteel color plate
Refrigeration unit:
Compact split systems refrigeration unit with 1.25 HP Embraco Hermetic reciprocating compressor.
