Keep your vegetables/ fruits fresh for long-term!
Best insulation panels to save the operation cost!
Design best solution suited to your storage requirements!
Best brand color plate material to be used for many years!
High efficiency refrigeration unit to meet your operation need!
(1) Range: a.10~15°C b. -5~10°C
(2)Application:
Medium temperature room: fresh vegetables/ fruits→ keep fresh for long-term store
Low temperature room: frozen meat→ keep frozen
Vegetables/Fruits/Milk/Yoghourt/Flower, Etc…
(1) Seafood cold room: Stainless steel / Salinization sheet.
(2) Other meat: Color plate steel.
(3) Other chooses: aluminum/ galvanized
(4) Special chooses: two different surface materials
Color plate steel is the best choice for vegetables/ fruits/meat storage: anti-rust, good insulation, cost-effective, long life span.
Stainless steel
(1) Panels thickness: 50, 75, 100, 120, 150, 180, 200mm.
(2) Panels density: 42kg/m3

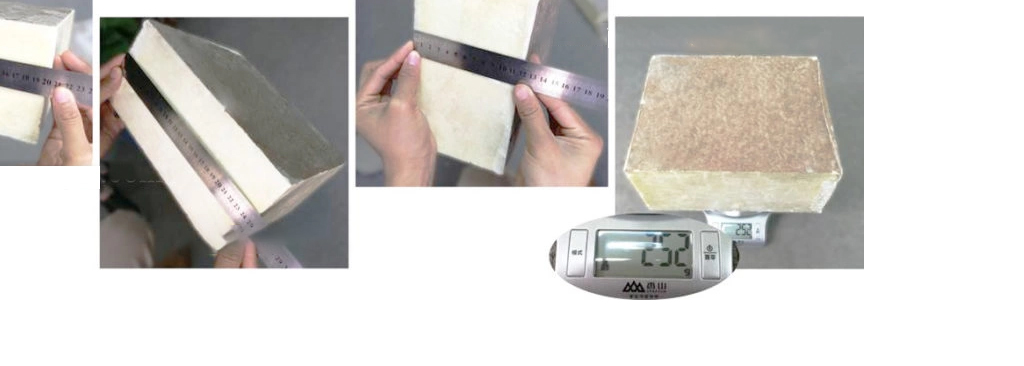

Density calculation test:
Width=0.2m
Length=0.25m
Height=0.12m
Weight=0.252kg
Density=Weight/Volume=0.252/(0.2×0.25×0.12)
=42kg/m3
(3) Cam lock: Galvanized, easy and convenient for installation.
(4) Fireproofing
Fireproofing grade: A>B1>B2>B3 (Gradually increase from right to left)
Our PU panels: B1steel+B2foaming=B1 PU panels
(5) Surface materials
√ Designed: by Teledoor in Germany.
√ Surface materials: 0.6mm color plate.
√ Door hinges German STUV, EU standard.
√ Door’s hardware, switches and door seal: best quality.
√ Our door can be used 2-3 times longer than other suppliers’.
√ Guide cover: protect guide from dust and deformation.
√ Professional design: no pressure on wall panel and cam lock.
√ Strong aluminum frame system: support the door, lead the door weight to floor.
√ Designed: self-closing hinge
√ Function: automatically shut off
√ Application: restaurant, hotel, etc…
When you are often too busy to close the door, the self-closing door is a good choice.
Case:
Customer info:
These two cold rooms are for mutton storage, and one is chiller room another is freezer room with the size of 2.5×2.3×2.2(H) meter. William would like the temperature range 0~10°C for chiller room, -18~-23°C for freezer room.
Order info:
Panels：100mm with 0.426 mm two sides Color plate
Refrigeration unit:
0-10°C：
2HP Maneurop Hermetic reciprocating compressor (France origin),
Capacity: 3712W, Input: 1.5KW, Room volume: 35~44m3
-15~-23°C：
1.75HP Maneurop Hermetic reciprocating compressor (France origin),
Capacity: 1491W, Input: 1.3KW, Room volume: 15~22m3
