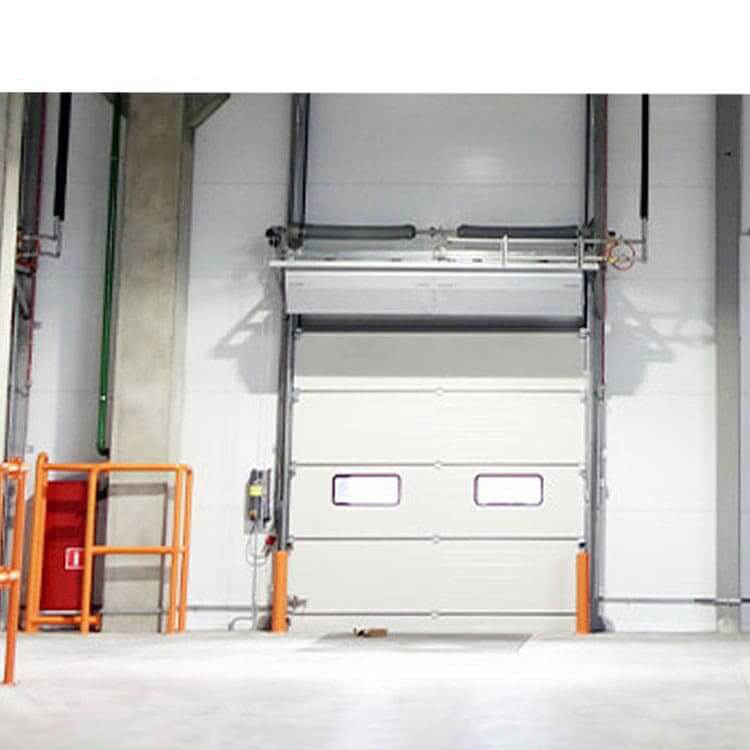

Logistic cold storage, high temp +10~+15C storage room for fruit & vegetable.
With 15pcs overhead sectional doors
The insulated sectional door is a kind of door with a dynamic balance system and the rollers on both sides of the door leaf move up and down along the guide rail as a whole. It has the characteristics of sturdiness, heat preservation, and space-saving.
|
Applicable temperature
|
0°C~+50°C
|
|
Cold room door material
|
100% polyurethane foaming material
|
|
Door thickness
|
42mm
|
|
Steel plate optional
|
0.5mm embossed steel plate, Baosteel
|
|
Door height
|
500mm
|
|
Wind resistance
|
450N/M2
|
|
Minimum size (mm)
|
2000×1500
|
|
Maximum size (mm)
|
10000×6000
|
1)Door panel: Filled with 48kg/m3 fluorine-free polyurethane warm foam material in the middle of the door panel.
2)Access door: The choice of access door can greatly reduce the use frequency of the door and extend the service life of the door. The size of the small door is 850mX850mm (width x height). The size of the small door is fixed and the hinge is always on the right side.
3)Daylighting window: The daylighting window is a rectangular window, the size is 650H1×320M.

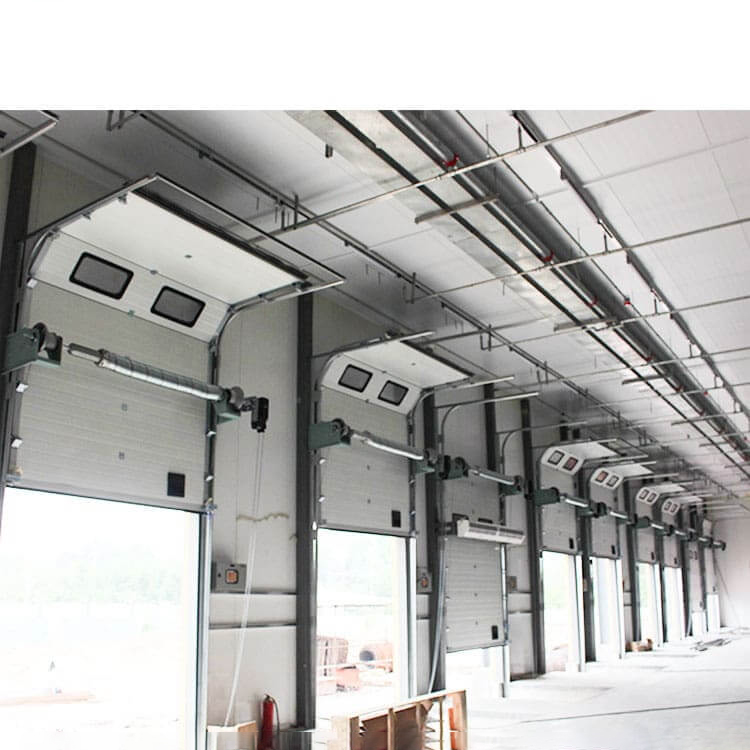

Logistic cold storage, high temp +10~+15C storage room for fruit & vegetable.
With 15pcs overhead sectional doors
3200㎡ logistic cold storage project; 150mm PIR panel. 12m height.
With 20pcs sectional overhead doors.
10pcs cold storage room for vegetables and fruits.
With 20pcs sectional overhead doors.
We offer a variety of cold room doors. For more details, please feel free to contact us!
