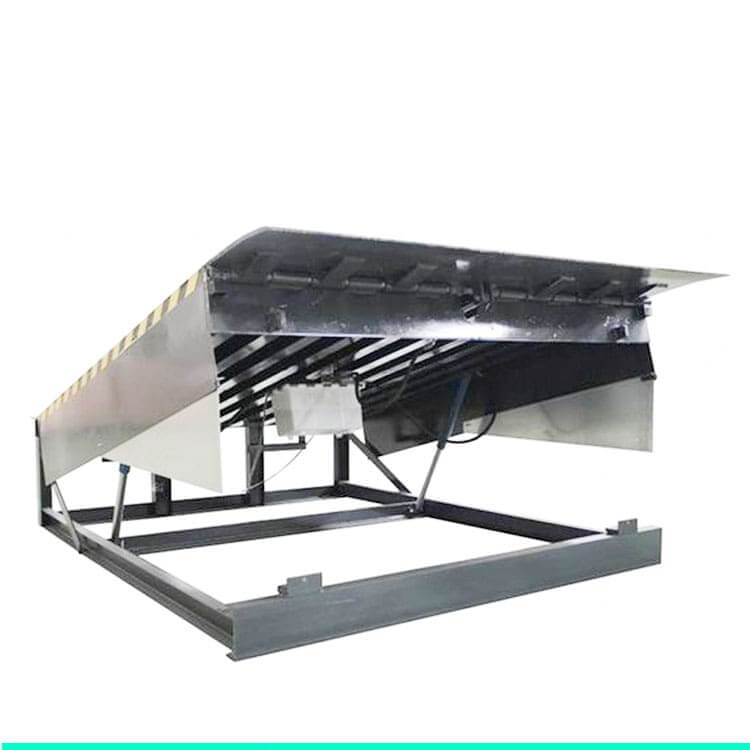

Dock levelers are standard equipment for transporting goods in and out of logistics warehouses. They can be adjusted up or down according to the different heights of the carriages. The auxiliary platform is placed on the carriage to facilitate forklifts to drive directly into the carriage to load and unload goods, speeding up shipments and improving the efficiency of warehouse entry and exit of materials and daily delivery.
Lifting goods: Allowing goods to move smoothly between different heights and reducing handling work.
Height adjustment: It can be adjusted to a height suitable for trucks or warehouse platforms to facilitate cargo handling.
Improve operating efficiency: Simplify the loading and unloading process, saving time and labor costs.
Loading function: According to the design, it can carry goods of different weight classes.
| 1、Platform base support | 2、Upper Plate | 3、main hydraulic lever*2 | 4、Hydraulic unit | 5、Hydraulic oil pipe |
| 6、Anti-cut board | 7、Swinging Lip hydraulic rod | 8、Swinging Lip | 9、Repair struts |
| Upper Plate | 6mm thickness, anti-skate steel plate |
| Platform support steel | 10#I Beam |
| Swinging Lip | Single 14 mm thickness, anti-skate steel plate |
| Anti-cut board | 3mm galvanized steel plate |
| Hydraulic unit | Fully enclosed hydraulic system imported from Germany, 380V, 0.75kw |
| Hydraulic cylinder | φ30 plunger cylinder, ultimate working pressure 21MP, inverted dust-proof and debris-proof design |
| Hydraulic oil pipe | High pressure steel wire braided hose, ultimate working pressure 70MP |
| Loading Capacity | Dynamic Loading Capacity≤10T，Static Loading Capacity≤17T |
| Operating Temperature | +60℃ ~ -40℃ |
| Service Life | ≥100000times |
| Safe design | Hydraulic explosion-proof valve, vehicle detachment, oil pipe burst lock, built-in U-fork maintenance support rod, load-bearing limit 3T |
| Working Range | +300mm，-300mm |
| Paint | Special electrostatic powder spraying for automobiles, one layer of primer and two layers of topcoat, baked at 300℃ |
I-beams are used at the bottom of the table. The uniform layout allows the forklift’s tires to press evenly on the I-beams at any position on the platform.
The main frame of the platform is a fully enclosed design, which is strong and not easily deformed. It will not deform during transportation, installation and use.
The dual-cylinder hydraulic design has an extra-long hydraulic cylinder on the left and right, making it more stable and balanced during operation. Especially after an emergency, when there are forklifts and goods on the platform, it will not cause rollover due to left-right imbalance. The inverted design of the hydraulic cylinder can effectively avoid failure of the emergency hydraulic valve caused by damage by small debris.
Patented unique “duckbill” shaped thickened overlapping plate (the front end of the connecting plate has a 5-7° arc transition),
which can effectively avoid bumps and resting on the ground during loading and unloading.
About the dock leveler, we can design and offer you professional 3D and CAD drawings according to installation conditions. It’s very easy to install dock leveler when the pit is ready well. It also makes your logistics work more convenient.
