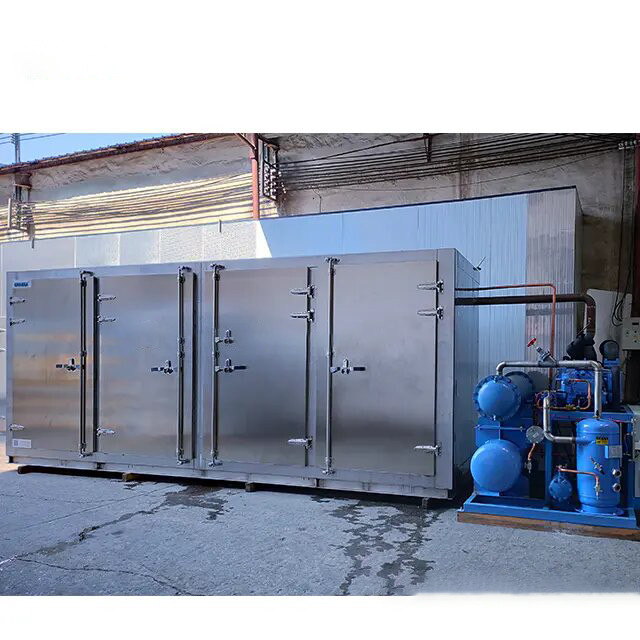

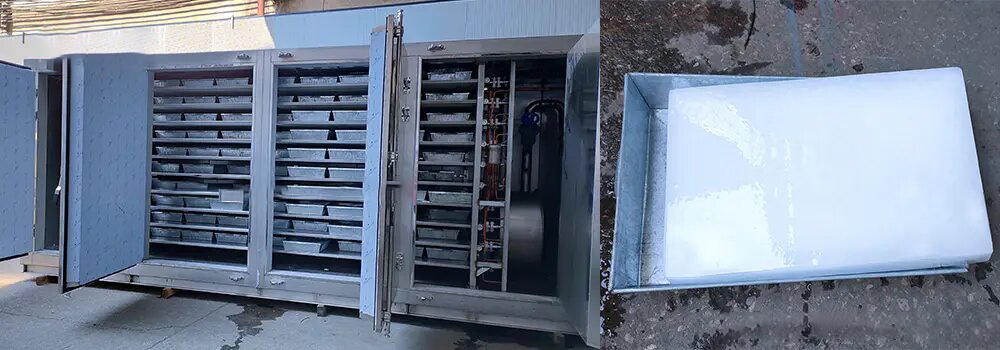

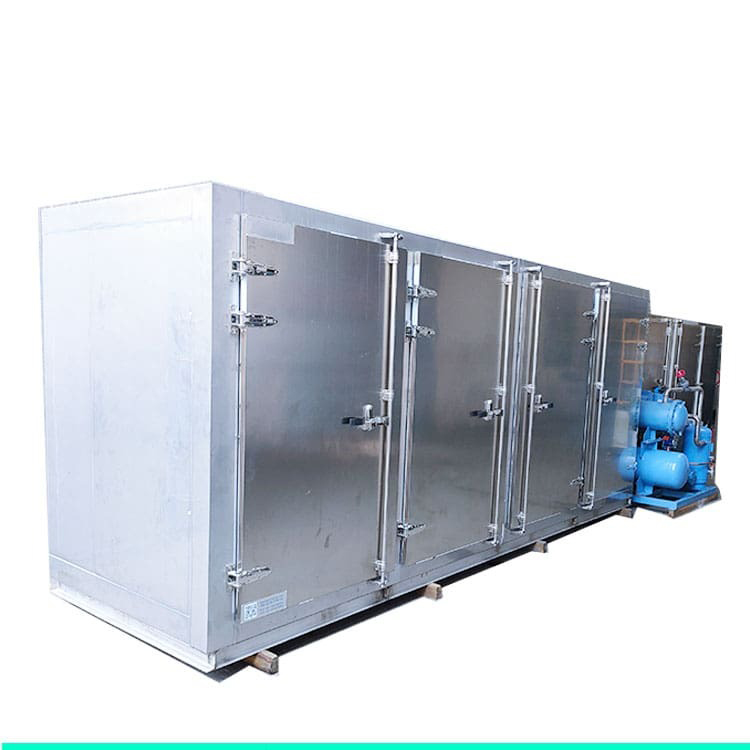

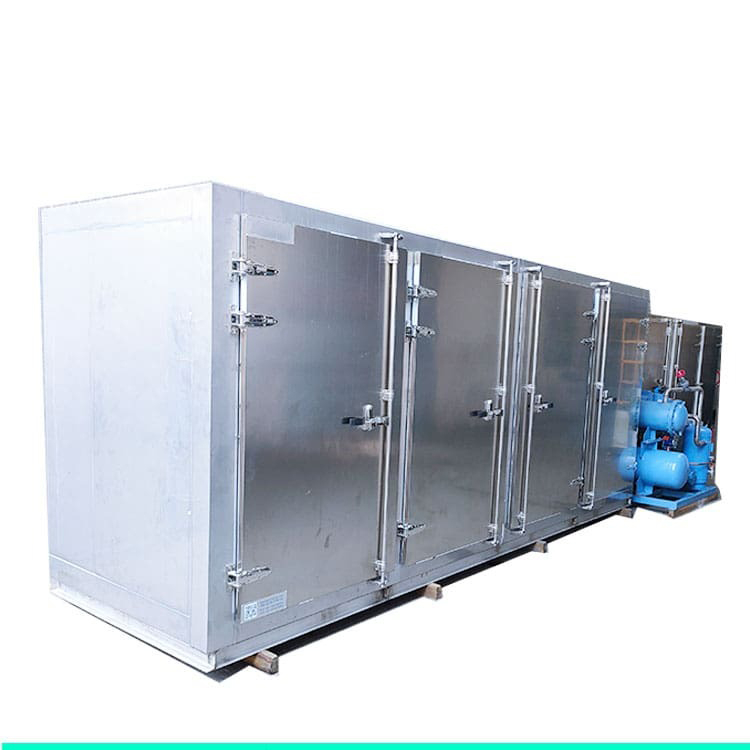

Semi-contact plate freezer uses two methods: blowing air and contacting products with the aluminum plate to freeze food quickly.
Fast freezing speed, minimal food dry consumption, and good freezing quality are all benefits.
Semi-contact plate freezers 500kg
semi-contact plate freezers 1000kg
Seafood: shrimp, fish, fillets, crab
Meat processing: beef, pork, chicken cut into pieces
Fresh produce: vegetables, fruits.
Other products: frozen dough, processed foods.
| Model | Parameter |
| Capacity | 500kg – 2000kg/batch |
| Cooling Capacity | 15KW – 51KW |
| Structure type | Shelf plate (fixed height) |
| Dimension L*W*H (mm) | 4500 × 1450 × 1850mm; 4800× 1750 × 2250mm; 7600× 1750 × 2250mm |
| Plate (mm) | 4600× 1200mm |
| Layer | 8 to 10 Layers |
| Layer Space | 150mm |
| Panel thickness | 150mm |
| Compressor model | screw compressor |
| Compressor quantity | 1 set |
| Refrigerant | R22/R507 |
| Power supply | 380V/50HZ/3P |
If you would need high-quality and professional service, please contact us. Now here are more information:
Integrated design of the whole machine, small occupation, easy to move and installation is extremely simple
In order to ensure zero leakages during plate freezer service life, we have to consider the worse conditions, such as a fish tray strike, a forklift strike, and so on.

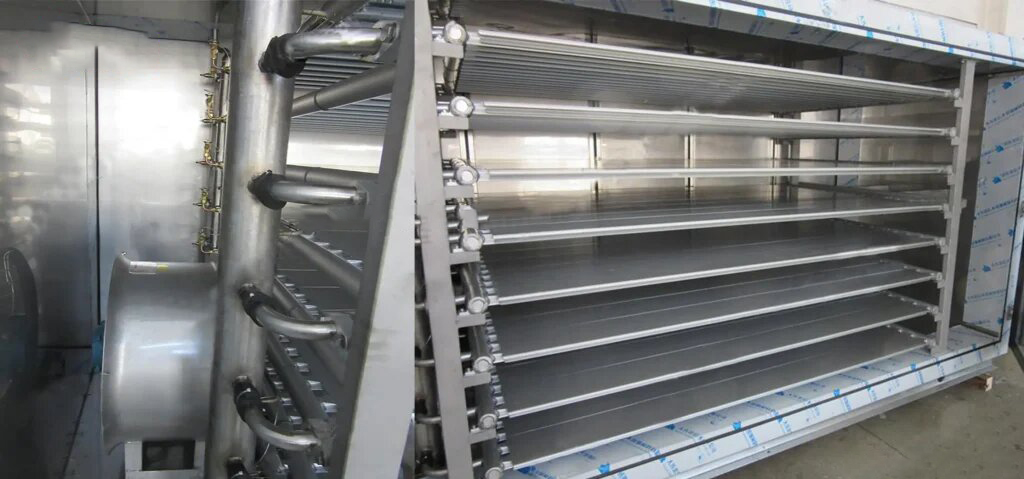

Aluminum alloy plate adopts special shaped aluminum alloy plate, the upper surface is flat, the lower surface is corrugated pipe plane, increases the contact surface with frozen products, the evaporation area is also doubled, greatly improving the heat exchange efficiency.
The main engine uses a low-temperature screw compressor, which has a big cooling capacity, and a high energy efficiency ratio, and is designed specifically for low-temperature operation.
Many projects have been done and working perfectly, such as Russia, the Philippines, and South Africa, etc. We also have condensing unit, air blast freezer, spiral freezer, tunnel freezer, water chiller, ice machines, and so on.
For this article, you will know: What’s the Difference Between IQF Freezing and Cold Storage Freezing?
